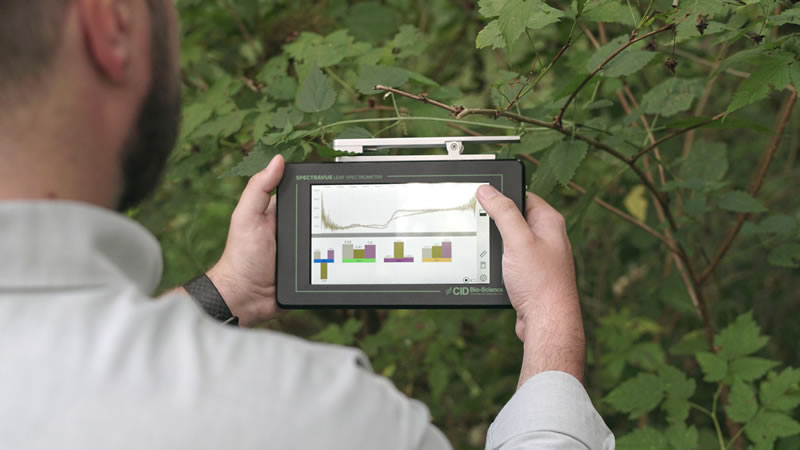

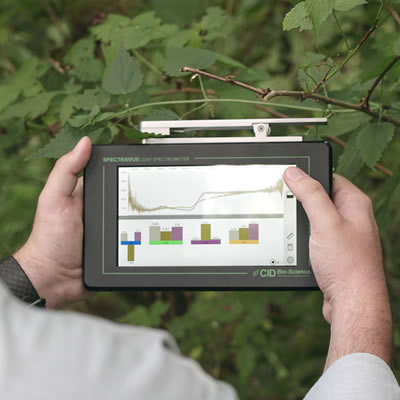

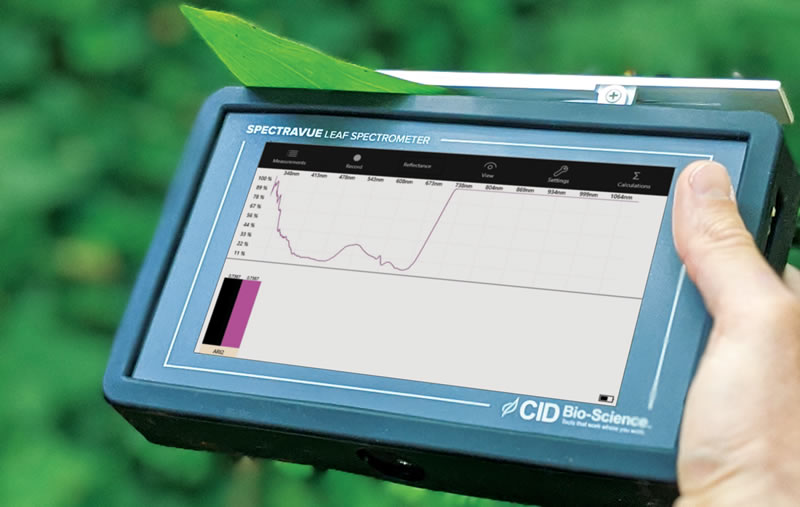

A powerful spectrometer paired with a leaf probe attachment, on-board software and touchscreen display

Key Features

• Upgraded with an all new spectrometer and wider spectral range-360-1100nm

  Handheld form factor with a 7" 1024x600 IPS touchscreen display

• Measures reflectance, transmittance and absorbance simultaneously


• Easy portability for remote operation


• A full suite of built in analysis software


• GPS enabled


Fields of application

• Agronomists use SpectraVue to analyze the effects of different nutrient applications


• Plant Physiologists use SpectraVue to evaluate environmental changes on plant stress


• Educators use SpectraVue to demonstrate spectral measurements of leaves


• Ecologists use SpectraVue to compare changes in pigments across elevations

Measurement parameters

• Dimension                       220 mmx150 mm x30 mm

  Weight                             952 g

  Operating Environment  -30° to 70°C storage,

                                          -10°to50°C Operation,

                                          0%-90% noncondensing

                                          humidity

  Minimum Leaf Size         20 mm x20mm

  Display                            7" 1024 x600 IPS Display

  Languages                      English, Spanish

  Measure Modes              Reflectance, Transmittance

                                          and Absorbance

  Memory                          64GB




  Detector Specifications

  Detector                         CMOS Linear Array

  Wavelength Range        360-1100nm

  Pixels                              2048 pixels

  Pixel Size                        14 μm x 200 μm

  Pixel Well Depth            100,000 electrons

  Signal-to-Noise Ratio    330:1 (at full signal)

  A/D Resolution              16bit

  Dark Noise                    16 counts

  Corrected Linearity        >99.8%

  Sensilivity                       337.500

  Wavelength Data           0.55-0.7nm

  Increment




  Spectroscopic

  Grating                           300 lines/mm.Slit =55 μm

  Optical Resolution          2.4FWHM in nm

  Integration Time             0.03ms-60 seconds

  Dynamic Range              3300:1

  Stray Light                      0.2-1.0%




  Electronics

  Power Supply                  Two 18650batteries &USB-C

  Battery Life                      3-4hours

  Trigger Mode                  Manual
